This document is intended to describe the major aspects of GNUnet, from the user interface down to the deepest internals. The document is organized such that it will start with general issues, then go to using the existing implementation, configuration, system design, protocols and finally ideas for future work. So most readers will want to start at the beginning and give up somewhere in the middle.
Like most documentation, it will probably never really be finished. You are of course welcome to help bring it closer to that stage!

If you like code, there is Doxygen generated documentation (HTML) available that you may want to look at. The HTML converted man pages are now also available.

Table of Contents

GNUnet logo
  1. Copyright and Contributions
  2. Design Goals and Philosophy
  3. Installation
  4. User Interface
  5. Concepts
  6. The GNUnet configuration file
  7. System Design
  8. GNUnet Protocol I: node-to-node
  9. GNUnet Protocol II: client-to-node
  10. Code Modules
  11. Future Work

Some fairly special topics that are mostly relevant for very advanced users and developers have their own dedicated page:

  1. Transport services
  2. Content encoding
  3. Namespaces and directories

Copyright and Contributions

GNUnet is part of the GNU project. All code contributions must thus be put under the GNU Public License (GPL). All documentation should be put under FSF approved licenses (say fdl). GNU standards and the GNU philosophy should be adhered to.

Design Goals and Philosophy

The goal of the GNUnet project is to become the ultimate system for free information exchange in a world hostile toward uncontrolled communication. We value free speech above state secrets, law-enforcement or intellectual property. GNUnet is supposed to be an anarchistic network, where the only limitation for peers is that they must contribute enough back to the network such that their resource consumption does not have a significant impact on other users.

GNUnet's primary design goals are to protect the privacy of its users and to guard itself against attacks or abuse. GNUnet does not have any mechanisms to control, track or censor users. Instead, the GNUnet protocols aim to make it as hard as possible to find out what is happening on the network or to disrupt operations.

We call GNUnet a network because we want to support any operation that is typically performed on a network. While the first versions only support anonymous file-sharing, other applications such as mail, news or distributed computation will hopefully follow in the future. Running additional applications over the link-to-link encrypted peer-to-peer infrastructure increases the anonymity of the peers as the set of users and the amount of encrypted traffic grows. Increasing privacy is the primary reason why GNUnet is developed to become a peer-to-peer framework. A rudimentary chat client has been implemented as reference code for how to implement other applications on top of the GNUnet peer-to-peer infrastructure.

For GNUnet, efficiency is not paramount. If there is a more secure and still practical approach, we would choose to take the more secure alternative. telnet is more efficient than ssh, yet it is obsolete. Hardware gets faster, and code can be optimized. Fixing security issues as an afterthought is much harder.

While security is paramount, practicability is still a requirement. The most secure system is always the one that nobody can use. Since individual security requirements may vary, the only good solution here is to allow individuals to trade-off security and efficiency. The primary challenge in allowing this is to ensure that the economic incentives work properly. In particular, this means that it must be impossible for a user to gain security at the expense of other users. Many designs (e.g. anonymity via broadcast, see P5) fail to give users an incentive to choose a less secure but more efficient mode of operation. GNUnet should avoid whereever possible to rely on protocols that will only work if the participants are benevolent. While some designs have had widespread success while relying on parties to observe a protocol that may be sub-optimal for the individuals (e.g. TCP Nagle), a protocol that ensures that individual goals never conflict with the goals of the group is always preferable.

Anonymity can always only be achieved with large numbers of participants. Thus it is important that we make GNUnet easy to use and well-documented.

Installation

First, in addition to the GNUnet sources you should download the latest version of libextractor and install that library. This can typically be done using
# ./configure --prefix=$HOME
# make
# make install
Then make sure that $HOME/lib is in your library path, either by setting LD_LIBRARY_PATH or by adding it to /etc/ld.so.conf if you are root (in this case, substitute $HOME with /usr/local). Then compile and install GNUnet using:
# ./configure --prefix=$HOME --with-extractor=$HOME
# make
# make install
Finally, copy the default GNUnet configuration file into your home-directory:
# mkdir $HOME/.gnunet
# cp contrib/gnunet.conf $HOME/.gnunet/gnunet.conf
If you are root, you may want to copy the configuration to /etc/skel/ instead of $HOME. Every GNUnet user must have an individual configuration file installed under $HOME/.gnunet/gnunet.conf!

Finally, start the server using

# gnunetd
If you want to automatically start the service each time your machine boots contrib/initgnunet contains an example script to start the server as user gnunet with a configuation in /var/lib/GNUnet/gnunet.conf. You may want to use contrib/gnunet.conf.root as a tempalte for that configuration.

User Interface

Anonymous file sharing logo The only useful application that is currently available for GNUnet is anonymous file-sharing. The GUI interface is described here. For shell-gurus, five shell commands provide the interface:

gnunet-insert

The command gnunet-insert can be used to add content to the network. The basic format of the command is
# gnunet-insert [-n] -f FILENAME "Description" KEYWORDS*
The option -f is used to specify the name of the file that should be inserted. The description (which must be in quotes) is displayed to other users when they select which files to download. KEYWORDS is a space-separated list of keywords that users can use to query for the file. You can supply any number of keywords, and each of the keywords will be sufficient to locate and retrieve the file.
The description and the keywords are optional if you have libextactor installed and libextractor is able to infer keywords and a description from the file.

By default, GNUnet indexes a file instead of copying it. This is much more efficient, but requries the file to stay unaltered at the location where it was when it was indexed. If you intend to move, delete or alter a file, consider using the option -n which will force GNUnet to make a copy of the file in the database. Since it is much less efficient, this is strongly discouraged for large files. When GNUnet indexes a file (default), GNUnet does not create an additional encrypted copy of the file but just computes a summary (or index) of the file. That summary is approximately two percent of the size of the original file and is stored in GNUnet's database. Whenever a request for a part of an indexed file reaches GNUnet, this part is encrypted on-demand and send out. There is no need for an additional encrypted copy of the file to stay anywhere on the drive. This is very different from other systems, such as Freenet where each file that is put online must be in Freenet's database in encrypted format, doubling the space requirements if the user wants to preseve a directly accessible copy in plaintext.
Thus indexing should be used for all files where the user will keep using this file (at the location given to gnunet-insert) and does not want to retrieve it back from GNUnet each time.
The option -n may be used if the user fears that the file might be found on his drive (assuming the computer comes under the control of an adversary). When used with the -n flag, the user has a much better chance of denying knowledge of the existence of the file, even if it is still (encrypted) on the drive and the adversary is able to crack the encryption (e.g. by guessing the keyword).
Multiple files can be inserted in one run with the gnunet-insert-multi command. If you want to remove a file that you have indexed from the local peer, use the tool gnunet-delete to un-index the file.


Before you can insert, index, share, search or download files from GNUnet you must start the GNUnet server, gnunetd. gnunetd has the following common options:

# gnunetd -c CONFIGFILE -u USER
CONFIGFILE specifies the location of the configuration file. If you start gnunetd as root (which is not required), you can use the -u option such that GNUnet runs as a different user. If a group of the same name exists, GNUnet will also change to that group.


The command gnunet-search can be used to search for content on GNUnet. The format is

# gnunet-search [-t TIMEOUT] KEYWORD [AND KEYWORD]*
The -t option specifies that the query should timeout after approximately TIMEOUT seconds. A value of zero is interpreted as no timeout. If multiple words are passed as keywords and are not separated by an AND, gnunet-search will concatenate them to one bigger keyword. Thus,
# gnunet-search Das Kapital
and
# gnunet-search "Das Kapital"
are identical. You can use AND to separate keywords. In that case, gnunet-search will only display results that match all the keywords. gnunet-search cannot do multiple independent queries ("OR"); you must use multiple processes for that. Mind that each GNUnet-server (gnunetd) has a built-in limit on the number of clients (like gnunet-search or gnunet-download) that can connect simultaneously (you can change this value in src/include/config.h).

Search results are printed by gnunet-search like this:

gnunet-download -o "COPYING" -- 77DBE6F971D66F641B2262DDCE78CA8FB6815E60\
  E34BFD7843D4C8469EFC3DAD260F1F71783E2A87 466DC92 17992
=> The GNU Public License <= (mimetype: unknown)
The first line is the command you would have to enter to download the file. The argument passed to -o is the suggested filename (you may change it to whatever you like). The -- is followed by key for decrypting the file, the query for searching the file, a checksum (in hexadecimal) finally the size of the file in bytes. The second line contains the description of the file; here this is "The GNU Public License" and the mime-type (see the options for gnunet-insert on how to change these).


In order to download a file, you need the three values returned by gnunet-search. You can then use the tool gnunet-download to obtain the file:

# gnunet-download -f FILENAME -- HASH1 HASH2 CRC SIZE
FILENAME specifies the name of the file where GNUnet is supposed to write the result. Existing files are overwritten. If you want to download the GPL from the previous example, you do the following:
# gnunet-download -o "COPYING" -- 77DBE6F971D66F641B2262DDCE78CA8FB6815E60\
  E34BFD7843D4C8469EFC3DAD260F1F71783E2A87 466DC92 17992
If you ever have to abort a download, you can continue it at any time by re-issuing gnunet-download with the same filename. In that case, GNUnet will not download blocks again that are already present. GNUnet's file-encoding mechanism will ensure file integrity, even if the existing file was not downloaded from GNUnet in the first place. You may want to use the -V switch (must be added before the --) to turn on verbose reporting. In this case, gnunet-download will print the current number of bytes downloaded whenever new data was received.


The option -c CONFIGFILE can be passed to each of the commands to override the default location of the configuration file. The option -v shows the current version number. Use -h to get a short description of the options.

gnunet-stats

gnunet-stats is a little tool that displays statistics. The numbers are for the current gnunetd process only. The output looks similar to this, depending on which modules you have been loading and what your node has been doing so far:
# bin/gnunet-stats
Uptime (seconds)                                            :              115
# kb of storage used                                        :           402821
# kb of storage remaining                                   :           645755
% of allowed network load                                   :               42
% of allowed cpu load                                       :                0
# bytes of noise received                                   :              200
# bytes received from clients                               :               16
# times outgoing msg sent (bandwidth ok)                    :                6
# times outgoing msg dropped (bandwidth stressed)           :                0
# times incoming msg accepted (cpu ok)                      :               10
# times incoming msg dropped (cpu overloaded)               :                0
# ping messages sent                                        :                1
# ping messages received                                    :                2
# pong messages sent                                        :                2
# pong messages received                                    :                1
# sessionkeys received                                      :                1
# valid sessionkeys received                                :                0
# sessionkeys sent                                          :                1
# connections shutdown                                      :                0
# currently connected nodes                                 :                1
# bytes noise sent                                          :             2656
# encrypted bytes sent                                      :             7260
# bytes decrypted                                           :            10164
# bytes received via tcp                                    :            22744
# bytes sent via tcp                                        :             9076
# bytes received via udp                                    :            15794
# bytes sent via udp                                        :             8016
# HELO messages received from http server                   :               29
# HELO messages received overall                            :                7
# valid HELO messages received                              :                2
# HELO messages forwarded from other peers                  :                0
# HELO messages originated                                  :                0
# Bloomfilter (content_bloomfilter) hits                    :                0
# Bloomfilter (content_bloomfilter) misses                  :               34
# Bloomfilter (content_bloomfilter) adds                    :                0
# Bloomfilter (content_bloomfilter) dels                    :                0
# Bloomfilter (keyword_bloomfilter) hits                    :                0
# Bloomfilter (keyword_bloomfilter) misses                  :              196
# indexed files                                             :                4
# size of indexed files                                     :          1544183
# lookup (3HASH, search results)                            :                0
# lookup (CHK, inserted or migrated content)                :                1
# lookup (ONDEMAND, indexed content)                        :                0
# times storage full                                        :                0
# kb content pushed out as padding                          :                0
# kb downloaded by clients                                  :                0
# kb ok content in                                          :                0
# kb dupe content in                                        :                0
# kb orphan or pushed content in                            :                1
# p2p queries received                                      :               45
# p2p CHK content received (kb)                             :                1
# p2p search results received (kb)                          :                0
# client queries received                                   :                0
# client CHK content inserted (kb)                          :                0
# client 3HASH search results inserted (kb)                 :                0
# client file index requests received                       :                0
# file index requests received                              :                0
# super query index requests received                       :                0
The number of connected hosts is the nummber of hosts that the local node is directly connected to (1 hop). The total number of hosts in the network must be larger or equal to this number. Note that TIMESTAMP messages are not send by the current implementation and thus the counter is pretty much always zero. Also the server-client protocol is asymmetric. For example, it is currently impossible that the client receives a STATREQ message.
While the numbers shown above are from an actual node, they may not be representative. GNUnet-developers are working on reducing the amount of noise needed and on improving the ratio between queries send and responses routed.

gnunet-gtk

gnunet-gtk is the GTK+ interface for GNUnet. It can currently only be used to search for and download files from the network. gnunet-gtk can also be used to insert files into the network. If you want to insert lots of files, you're probably better of using gnunet-insert or even gnunet-insert-multi.

After gnunet-gtk was started, you should see the following:

Enter the query into the input line at the bottom and click on search. A new window will open. In that window, search results obtained from the network will be listed once they arrive. gnunet-gtk will keep searching for the query until you close that window. No duplicate results will be displayed.

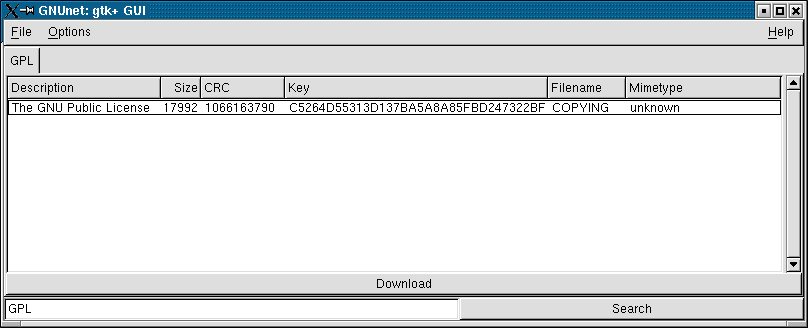

This window displays the search results
You can enter additional queries or select a file to download from the list. The size of the file is displayed in bytes. Mind that the description was supplied by the user inserting the file and may not be accurate. After you click on the download button, the entry selected will be removed from the results list and a dialog will prompt you for the filename that you want to give to the file. If you choose an existing file, that file will be overwritten without any warnings. If the existing file contains the same data (even in parts) as the file that you are trying to download, those parts will not be downloaded again. You can use this feature to continue downloads that were incomplete. After you gave a filename, click on ok. The dialog will disappear and gnunet-gtk will start the download. A small window with a progress bar will tell you what percent has already been downloaded:
download progress
If you close this window before the download is complete, gnunet-gtk will abort the download. This will leave the parts of the file that were already downloaded on the drive. Be advised that the download usually starts very slowly, then speeds up, and eventually declines a bit again at the end. This is perfectly normal. Go get a coffee while doing the download. GNUnet uses a lot more time (but not much more bandwidth) because it delays processing to make traffic analysis hard. Even downloading a file from your local harddrive (that you inserted yourself) can take a couple of minutes! The good news is that the delays will become smaller whenever the traffic on GNUnet increases.
download completed

In order to insert a file, use the File menu. A dialog will pop up and prompt you to choose the file to insert:

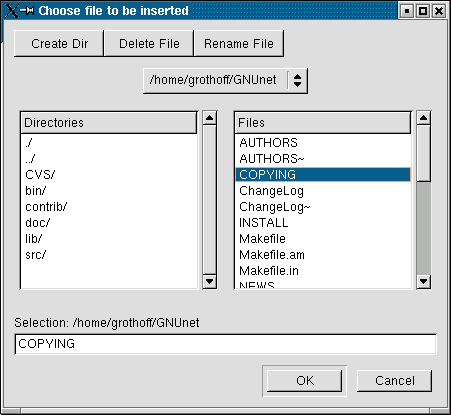

choose file to insert

Select the file and press ok. Next you will have to provide a description and keywords and choose if you want to index or insert the file (choose index if the file will not be moved or deleted to safe space):

choose file to insert

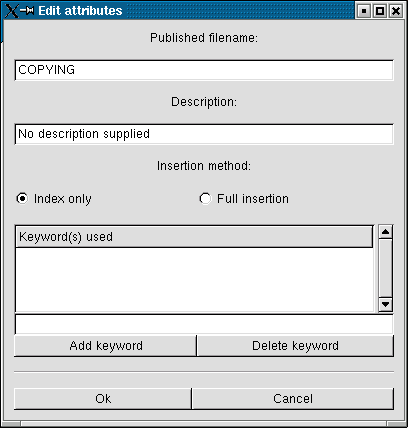

adding keywords

Finally, press ok and watch GNUnet making the file available:

insertion in progress

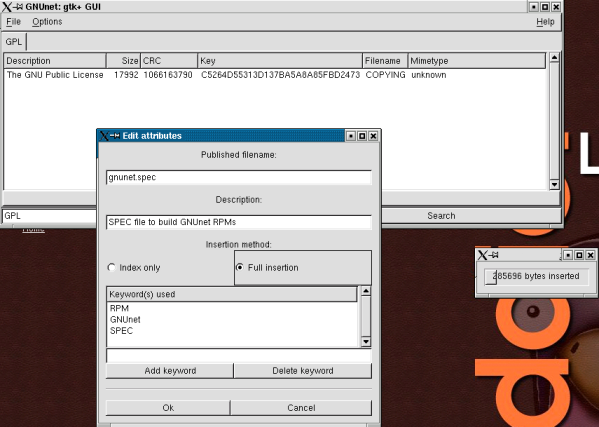

You can even do these things in parallel:

The big picture.

Concepts

In this section, the fundamental concepts of GNUnet are explained. Most of them are also described in one our research papers.

Anonymity

Anonymity in GNUnet is achieved even when facing powerful adversaries. Providing anonymity for users is the central goal behind the whole system, thus, many other design decisions follow in the footsteps of this requirement.

Contrary to other designs, we do not believe that users achieve anonymity just because their requests are obfuscated by a couple of indirections. This is not sufficient if the adversary uses traffic analysis. In our model, the adversary is very powerful. We assume that the adversary can see all the traffic on the Internet. And while we assume that the adversary can not break our encryption, we assume that the adversary has many participating nodes in the network and that it can thus see many of the node-to-node interactions since it controls some of the nodes.
GNUnet is build on the idea that users can be anonymous if they can hide their actions in the traffic created by other users. Hiding actions in the traffic of other users requires participating in the traffic, bringing back the traditional technique of using indirection and source rewriting. Source rewriting is required to gain anonymity since otherwise an adversary could tell if a message originated from a host by looking at the source address. If all packets look like they originate from a node, the adversary can not tell which ones originate from that node and which ones were routed. Note that in this midset, any node can decide to break the source-rewriting paradigm without violating the protocol, as this only reduces the amount of traffic that a node can hide its own traffic in.

If we want to hide our actions in the traffic of other nodes, we must make our traffic indistinguishable from the traffic that we route for others. As our queries must have us as the receiver of the reply (otherwise they would be useless), we must put ourselves as the receiver of replies that actually go to other hosts; in other words, we must indirect replies. Unlike other systems, with GNUnet we do not have to indirect the replies if we don't think we need more traffic to hide our own actions. This increases the efficiency of the network as we can indirect less under higher load.

Deniability

Even if the user that downloads data and the server that provides data are anonymous, the intermediaries may still be targets. In particular, if the intermediaries can find out which queries or which content they are processing, a strong adversary could try to force them to censor certain materials.
With GNUnet, this problem does not arise because queries and content are transmitted in an encrypted format such that intermediaries cannot tell what the query is for or what the content is about. Mind that this is not the same encryption as the link-encryption between the nodes. In GNUnet, the traffic between the nodes is encrypted on each link to provide authentication and confidentiality (see below). But the queries and the content that the nodes transport over these links are also encrypted. GNUnet has encryption on the network layer (link encryption, confidentiality, authentication) and again on the application layer (provided by gnunet-insert, gnunet-download, gnunet-search and gnunet-gtk).

Authentication

As GNUnet requires accounting (see next section), we need to authenticate all communications. This is achieved using an RSA-based exchange of a secret session-key. That session-key is then used to encrypt the communication between the two hosts using Blowfish. As only the two participating hosts know the session-key, this authenticates each packet without requiring signatures. Furthermore, encrypted traffic makes any kind of traffic analysis much harder.
In GNUnet, the identity of a host is the hash of its public key. For that reason, man-in-the-middle attacks will not break the authentication or accounting goals. Essentially, for GNUnet, the IP of the host does not matter. As the public key is the only thing that truly matters, faking an IP, a port or any other property of the underlying transport protocol is irrelevant.
GNUnet uses a special type of message to bind public keys to their current address. For the UDP and TCP transport layers, an address is an IP and a port. In the future, other transport mechanisms (HTTP, SMTP, etc.) could be used and may deploy various other forms of addresses. Note that any node can have multiple addresses for the various transport mechanisms.

Cryptography

GNUnet uses 2048 bit RSA keys for the session key exchange and for signing messages by peers. Most researchers in cryptography consider 2048 bit RSA keys as very secure and practically unbreakable for a very long time unless extraordinary advances in cryptography are made. For the encryption of the files and the symmetric peer-to-peer communication GNUnet uses 128 bit keys with blowfish. Fresh session keys are negotiated for every new connection. Again, there is no published technique to break this cipher in any realistic amount of time. Note that GNUnet does not use RSA to encrypt files or ordinary individual peer-to-peer messages (no sane protocol uses public key cryptography for the bulk of the messages since public key encryption is extremely expensive compared to symmetric ciphers; GNUnet follows the well-established practice to use public key cryptography to exchange an initial symmetric key that is then used for the rest of the messages).

Accounting

Most distributed P2P networks suffer from a lack of defenses or precautions against attacks in the form of freeloading. While the intentions of an attacker and a freeloader are different, their effect on the network is the same; they both render it useless. Most simple attacks on networks such as Gnutella involve flooding the network with traffic, particularly with queries that are, in the worst case, multiplied by the network.
In order to ensure that freeloaders or attackers have a minimal impact on the network, GNUnet must between distinguish good (contributing) nodes from malicious (freeloading) nodes. In GNUnet, every node keeps track of the behavior of every other node it has been in contact with. GNUnet's economic model ensures that nodes that are not currently considered to have a surplus in contributions will not be served if the network load is high.

Confidentiality

Adversaries outside of GNUnet are not supposed to know what kind of action a node is performing, and even participating nodes can never tell what an action is about (which data is transferred or what the query is for) nor who initiated the action. This helps GNUnet to be hard to compromise even with attacks that use traffic analysis and malicious nodes in combination. Of course, the fact that a node is performing a request will still be revealed if all other nodes in the network collaborate aganist it. In this situation, the only recourse the node has is that the other nodes may not be able to determine the contents of the action. As far as we know, this determination is only possible if the adversary can guess the contents or break cryptographic primitives.

The GNUnet configuration file

The file gnunet.conf contains the configuration for the GNUnet server and the applications. All GNUnet programs expect this file to reside in $HOME/.gnunet/gnunet.conf. The option -c can be used if the file is located elsewhere.
In gnunet.conf the location of all the other files described in this section can be configured. We discuss the function of these files in their sections. The good news is, typically you don't have to worry about configuration at all. There are a few exceptions, though. You may want to configure a few things in gnunet.conf. The most important options are described below. If you are on dialup, look at HELOEXPIRES and probably INTERFACES. If you are behind a NAT box, look at IP. If you are a frontier host that is accessible from a trusted LAN and connected to the Internet, have a look at TRUSTED, BLACKLIST and HELOEXCHANGE.

The configuration of the SMTP transport layer is described here.

NETWORK: HOST

With this option, you can specify to which host the gnunet-clients should connect by default. You can override the choice you make here with the -H option. The default, localhost should be fine. Note that this option has no effect on gnunetd since it can always only open a port on the machine running gnunetd.

NETWORK: PORT

With this option, you can specify to which TCP port the gnunet-clients should connect. It is also the choice of the port for gnunetd. While you can restrict access to this port using the NETWORK: TRUSTED option, you may also want to firewall this port. A different port must be used for the TCP and UDP peer-to-peer transport mechanism. The default value is 2087.

NETWORK: INTERFACE

Use this option to specify which interface GNUnet should use to try to determine your IP. Alternatively, you can use the IP option.

NETWORK: IP

This option allows you to specify the advertised IP. If you do not specify anything, GNUnet will attempt to detect the IP. You really need this option if you are behind a NAT box. In that case, you have to specify the IP of the NAT box here (you can use a hostname, DNS is supported). For NAT boxes with changing IP, you may want to use Dynamic DNS.

NETWORK: HELOEXCHANGE

If you set this option to NO your node will not forward HELO messages that advertise other nodes. This option only makes sense if your node bridges two networks that both contain GNUnet nodes but that can not contact each other directly. The default value is YES. Stick to the default if you are unsure.

NETWORK: TRUSTED

With this option you can specfiy which addresses are trusted enough to connect to gnunetd via TCP as clients. The default is only the local host. If you are on a trusted LAN, you may want to specify the LAN network and netmask. You must use IPs, DNS lookup is not supported.

LOAD: INTERFACES

Under this option you specify which interfaces GNUnet is going to monitor to determine the load. If you have ethernet, the default is eth0. If you have a modem, try ppp0. In general, the command ifconfig (may not be in your path if you are logged in as a normal user, try /sbin/ifconfig) will show you the active devices.

LOAD: BASICLIMITING

Use basic bandwidth limitation? YES or NO. The basic method notes only gnunet traffic and can be used to specify simple maximum bandwidth usage of gnunet. Choose the basic method if you don't want other network traffic to interfere with gnunets operation, but still wish to constrain gnunet's bandwidth usage, or if you can't reliably measure the maximum capabilities of your connection. The basic method might also be good when the used interface can transmit data to/from local network very fast compared to internet traffic (a condition that makes the advanced method unreliable).
The advanced bandwidth limitation measures total traffic over the chosen interface (including gnunet traffic), and allows gnunetd to participate if the total traffic is low enough.

LOAD: MAXNETBPSUPTOTAL

If you use basic bandwidth limitation, this option specifies the maximum gnunet can use for its internal traffic. When using advanced limiting, use this option to specify your maximum upload speed (how many bytes per second your node can send). In that case, do not specify how much you want GNUnet to use, but use the maximum theoretically available. If you do not know your bandwidth, stick with the default of 50.000 bytes.

LOAD: MAXNETBPSDOWNTOTAL

Same as MAXNETBPSUPTOTAL, but for download speeds. Note that while GNUnet can not control exactly how much data other nodes are sending to your machine (this is only implicitly controlled if GNUnet drops connections because the bandwidth is used up), the upload limit is enforced strictly. If we are above our boundaries for the download limits, GNUnet will drop all traffic until we are back inside the limits. Note that if you disable BASICLIMITING, GNUnet will sense that other traffic is going on and only use the specified amount of bandwidth if you are not using it otherwise.

LOAD: MAXCPULOAD

Up to which CPU load will GNUnet process packets from other nodes. If the average CPU load goes over this value (like for the network, this includes other applications), GNUnet will start dropping packets and reduce the load. For example, if you are running an application that takes up all of your CPU power, GNUnet will pretty much not serve any other nodes (the node is considered busy). Only if the load is under the value specified here, GNUnet will serve other nodes. The default is 50, which should keep your hosts responsive enough while being more than sufficient for GNUnet on any modern machine.

UDP: PORT

Which port should the UDP transport layer use? If no value is specified, GNUnet will try to find a port in /etc/services. If you specify 0, this means that you do not want to open UDP for receiving messages (but, if you load the transport module, you can still send UDP traffic). The default port is 2086 as assigned to GNUnet by IANA. Since other peers will try to connect to this port, you should configure your firewall to let all traffic through. UDP is a stateless protocol, thus just allowing related traffic in a stateful firewall will not be sufficient.

UDP: BLACKLIST

If your node receives advertisements for nodes on virtual private networks, it should not even attempt to connect to those networks. You can use this option to specify a list of networks that are forbidden. gnunetd will then never attempt to communicate with these addresses. You will get an error if your own IP address is listed here.

UDP: MTU

This option specifies the maximum transfer unit, the maximum number of bytes that GNUnet will put in a UDP packet. This does not include the IP or UDP headers. Do not use more than your OS (and firewall) can support. Typcially, your want to avoid fragmentation and should choose network-MTU minus 28. You can determine your MTU using the ifconfig command. For ethernet, the network MTU should be 1500 octets, resulting in 1472 octets for the GNUnet MTU, which is also the default. Do not use values smaller than 1200.

TCP: PORT

Which port should the TCP transport layer use? If no value is specified, GNUnet will try to find a port in /etc/services. If you specify 0, this means that you do not want to open TCP for receiving messages (but, if you load the transport module, you can still initiate bi-directional TCP connections). Setting the TCP port to 0 is a common configuration for machines behind NAT boxes (these peers can then still initiate connections but other nodes will not attempt to connect). The default port is 2086 as assigned to GNUnet by IANA. Since other peers will try to connect to this port, you should configure your firewall to let all traffic through. Make sure that the port number you select here does not conflict with the client TCP port.

TCP: BLACKLIST

If your node receives advertisements for nodes on virtual private networks, it should not even attempt to connect to those networks. You can use this option to specify a list of networks that are forbidden. gnunetd will then never attempt to communicate with these addresses. You will get an error if your own IP address is listed here.

TCP: MTU

This option specifies the maximum transfer unit, the maximum number of bytes that GNUnet will put in a TCP packet. This does not include the IP or TCP headers. Typcially, your want to avoid fragmentation and should choose network-MTU minus 40. For ethernet, this would result in 1460 octets, which is also the default. Do not use less than 1200.

TCP: MAXTCPCONNECTS

The maximum number of concurrent TCP connections allowed. Note that the current implementation ignores this value. The default is 64.

Anonymous file sharing logo

AFS: DISKQUOTA

Use this option to specify how much space GNUnet is allowed to use on the drive. This does not include indexed files. The value is specified in MB, the default is 1024. Note that whenever you change this value, GNUnet may have to reorganize the database, which can take quite some time on the next start (obviously depending on the previous size of the database).
Large amounts of storage space may also have some impact on memory use, a typical value is around 250 kb memory per gigabyte of storage space. Note that indexing files (instead of inserting, indexing is the default, insertion can be enforced with the -n switch) is much cheaper; the files will cause less memory usage, use less space in the database and the operation will be faster.

AFS: ANONYMITY-RECEIVE

With this option you can specify the required degree of receiver anonymity. If set to zero, GNUnet will try to download the file as fast as possible without any additional slowdown by the anonymity code due to a lack of traffic. Note that you will still have a fairly high degree of anonymity due to link-to-link encryption, small uniform messages, pseudo-random routing and random delays. Still, your anonymity will depend on the current network load if the adversary is powerful enough to monitor most of your traffic. The download is still unlikely to be terribly fast since the sender may have requested sender-anonymity and since in addition to that, GNUnet will still do the anonymous routing.
This option can be used to limit requests further than that. In particular, you can require GNUnet to receive certain amounts of traffic from other peers before sending your queries. This way, you can gain very high levels of anonymity - at the expense of much more traffic and much higher latency. So set it only if you really believe you need it.
The definition of ANONYMITY-RECEIVE is the following:

The default is 0 and this should be fine for most users. Also notice that if you choose high values, especially above 1000, you may end up having no throughput at all, especially if many of your fellow GNUnet-peers do the same.

AFS: ANONYMITY-SEND

You can also request a certain degree of anonymity for the files and blocks that you are sharing. In this case, only a certain faction of the traffic that you are routing will be allowed to be replies that originate from your machine. Again, 0 means unlimited.
The semantics of ANONYMITY-SEND are equivalent to the semantics of ANONYMITY-RECEIVE.
The default is 0 and this should be fine for most users.

AFS: ACTIVEMIGRATION

Setting this option to YES allows gnunetd to migrate copy to the local machine. Setting this option to YES is highly recommended for efficiency. Its also the default. If you set this value to YES, GNUnet will store content on your machine that you can not decrypt. While this may protect you from liability if the judge is sane, it may not (IANAL). If you put illegal content on your machine yourself, setting this option to YES will probably increase your chances to get away with it since you can plausibly deny that you inserted the content. Note that in either case, your anonymity would have to be broken first (which may be possible depending on the size of the GNUnet network and the strength of the adversary).

AFS: INDIRECTIONTABLESIZE

Indirection table size, minimum and default is 8192 entries. Enlarge if you start to overflow often and have memory available.
If the average query lives for say 1 minute (10 hops), and you have a 56k connection (= 420 kb/minute, or approximately 8000 queries/minute) the maximum reasonable routing table size would thus be 8192 entries. Every entry takes about 56 bytes.
The larger the value is that you pick here, the greater your anonymity can become. It also can improve your download speed.

AFS: SEARCHTIMEOUT

After how many seconds should gnunet-search give up searching? The default is 300 seconds.

AFS: EXTRACTORS

Which additional extractors should gnunet-insert use for keyword extraction. The default set of extractors from your local libextractor installation is always used. Typically, an extractor for splitting keywords at word boundaries is added here.

AFS: DATABASETYPE

Which database type should be used for content? Valid types are "gdbm", "tdb", "bdb" , "mysql" and "directory". Specified type must have been available at compile time. "directory" is available on all systems. If the type is changed, you must stop gnunetd and run gnunet-convert to convert the database.
Here are some performance numbers for the databases from Eric Haumant (for a 100 MB file with random content):

Database Upload Speed Download Speed Space used
mysql 400 kb/s 300 kb/s 113 MB
gdbm 500 kb/s 400 kb/s 148 MB
tdb 27 kb/s 12 kb/s 118 MB
bdb 340 kb/s 260 kb/s 435 MB
directory 100 kb/s 300 kb/s 450 MB
Note that these numbers may be slightly different between different machines and different versions of GNUnet. Nevertheless, they should help you pick the right database for you (the choice is between work required to do the setup vs. performance).

GNUNETD: HELOEXPIRES

This option specifies how long (in minutes) your node will claim to be reachable under the current IP. If you have a permanent IP, a couple of days can be a reasonable value. If you are on dialup, you may want to choose only an hour. The default is 1440 (1 day). The largest acceptable value is 14400 (10 days).

GNUNETD: MAXCONNECT

The total number of nodes with which the current node will maintain a session-key for. Must be a power of 2, Set rather high as it doesn't cost much; this is NOT Gnutella. Note that the value is the number of connections that the local node will try to maintain. Often the actual number of connections will be lower, but even a higher connection count is possible if other peers connect to the local node after it has reached this value.

GNUNETD: LOGLEVEL

Loglevel, how much should be logged? You can use NOTHING, FATAL, ERROR, FAILURE, WARNING, MESSAGE INFO, DEBUG, CRON or EVERYTHING (which log more and more messages in this order). Default is WARNING. You can override this option at the commandline with the -L switch.

GNUNETD: LOGFILE

If gnunetd is not started with the -d option, it writes logging messages into this file (with -d all messages are written to the console). Read this mail if you are using logrotate.

GNUNETD: TIMESTAMPS

Should the logfile contain timestamps?

GNUNETD: PIDFILE

In which file should gnunetd write the process-id of the server? If you run gnunetd as root, you may want to choose /var/run/gnunetd.pid. It's not the default since gnunetd may not have write rights at that location.

GNUNETD: HOSTS

In this directory GNUnet stores the key and last known Internet address of each known GNUnet node. Each file is about 550 bytes long (different transport protocols may have different address sizes). A list of GNUnet hosts can be obtained from the GNUnet webpage. On startup, GNUnet downloads a list of initial hosts from http://www.ovmj.org/GNUnet/download/hostlist. This list is generated using
# cat ~/.gnunet/data/hosts/* > hostlist
Alternative hostlist servers can be used by modifying gnunet.conf.

Once connected, GNUnet hosts exchange information about other hosts automatically. Thus except for the initial connection, there should be no pressing need to obtain a new list (except if a node was offline for a long time and the old list aged so much that it became useless). If hosts cannot be reached and the time that the key has been signed to be valid by the sender has expired, GNUnet deletes their identities from data/hosts/. Note that the trust information is kept "forever".

GNUNETD: HOSTLISTURL

Whenever gnunetd is started, it downloads a list of initial nodes to connect to via http. The URL to use is specified here.

GNUNETD: APPLICATIONS

Which applications should gnunetd support? Specify the name of the dynamic shared object (DSO) that implements the service in the gnunetd core here. Currently, only the "afs_protocol" is available. The default is "afs_protocol".

GNUNETD: TRANSPORTS

Which transport mechanisms are available? Use space-separated list of the modules, e.g. "udp smtp tcp". For SMTP, please read the SMTP documentation for details.

GNUNET-INSERT: CONTENT-PRIORITY

What is the initial priority of content that is locally inserted? Default is 65535 which is very high (every day, content ages by 2 points; thus inserting content at 65535 will make it age to unimportant in about 100 years).

The contrib/ directory contains a template that should be self-explanatory.


System Design

This section is intented to be an introduction to programmers that want to extend the framework. GNUnet has a layered design. The basic goal for the layering is this: GNUnet layering

Layer Example code in
User Interface(s) gnunet-gtk apps/afs/tools/, apps/afs/gtkui/
Application Logic anonymous file sharing, statistics apps/afs/encoding/, apps/afs/protocol/, apps/afs/database/
Core gnunetd server/
Transport udp, tcp transports/

The util/ directory contains utility methods that could even be useful without GNUnet (io, cron, semaphores, etc.). util/ is thus used throughout the system. util/ contains also cryptographic primitives and the configuration system.
The test/ directory contains (always too few) testcases. The historical/ directory contains old code that is not used anymore but maybe useful in the future. The include/ directory contains all the include files in a directory structure that matches the tree for the code.

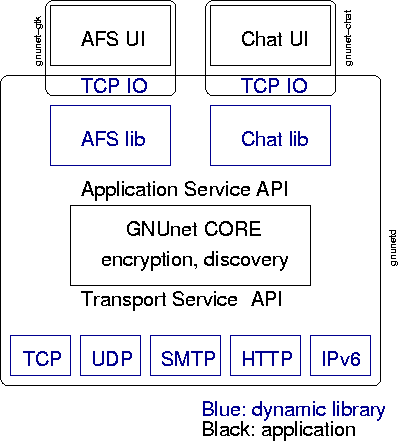

In GNUnet, the server gnunetd is responsible for accounting, routing and link-to-link encryption. The core relies on implementations of the TransportAPI for the actual transport of packets. The transport layer has, like the internet protocol (IP), best-effort semantics. There is no guarantee that a message will be delivered.
Services (like anonymous file-sharing) are build on top of GNUnet. Services use the CoreAPIForApplication to access the GNUnet core. Services are responsible for adding reliability (through retransmission) to the networking layer. The service is also responsible for avoiding congestion (see TCP). While the core will enforce bandwidth limitations set by the user, services should implement better strategies.
In order to ease the implementation of a service, GNUnet splits services in two parts. The first part resides in the process space of gnunetd and is always available to the GNUnet core. The core will notify this lowest layer of the service of messages that have arrived for the service. This layer of the service is responsible for all node-to-node interactions (for AFS, this layer provides routing, content lookup and handles QUERY/CONTENT messages). The second part of every service is an application which is invoked by the user. The idea is that the user starts a sepearate program (like gnunet-search, gnunet-download or gnunet-gtk) which provides a user interface to the service. This user interface uses a trusted (local) TCP connection to talk to the in-process part of the service.
The GNUnet core provides an easy way for services to register for certain types of messages from the application. The tcpio implementation provides functions to send and receive messages via TCP. Note that the TCP connection between the application and gnunetd is presumed to be totally secure (i.e. via loopback). You can specify the list of trusted IP addresses (i.e. the LAN) that are allowed to connect as clients to GNUnetd.

We now describe how you can write your own applications, interfaces and transport mechanisms for the GNUnet peer-to-peer framework.

How do I write a new application service for GNUnet?

The directory src/applications/template/ contains the minimal piece of code that you will need to start. You may also want to look at src/applications/chat/ for a simple example.
Most simple applications will consist of two pieces of code:
  1. The first is a dynamic library that plugs into the GNUnet core. This library must provide a single function which is invoked by the core when gnunetd starts. This function registers a couple of callbacks with the GNUnet core in order to handle certain peer-to-peer messages. Every peer-to-peer message is bounded in size (1300 octets) and must be bound to the appropriate application module using a number typically defined in src/include/util/ports.h. The number must be globally unique. The core module will be called whenever a peer-to-peer message matching a registered port number is received. The core module can send messages to other nodes using the CoreAPIForApplication. Typically, the module will also make use of GNUnet's client-server implementation tcpserver to communicate with a user interface. Like with peer-to-peer messages, the service can register for client-server messages.
  2. The second piece of code is a user interface application. Some implementations may even use a set of user interface applications (for example, the anonymous file sharing has gnunet-search, gnunet-insert, gnunet-download and a GUI that provides the combined functionality, gnunet-gtk). It depends on the specifics of the application if it uses dynamic libraries or not. The application must communicate with the service module that is loaded into the GNUnet core. While any IPC mechanism should theoretically work, the preferred way that is used by all existing GNUnet applications is tcpio, a simple TCP connection that communicates with the tcpserver.

    The simplest way for a user interface to connect to the GNUnet core via TCP is to use the helper methods defined in the common library, which defines methods for parsing the command line options and getting a client socket that is connected to gnunetd.

How do I write a new transport mechanism for GNUnet?

The best way to start implementing a new transport mechanism is to start with existing code that is semantically as close to the new mechanism as possible. The most important criteria is if the connection is stateful and bidirectional (TCP) or stateless and unidirectional (UDP, SMTP). Since reliability and delays are handled by the applications, these criteria are irrelevant for choosing an implementation to evolve from.

Every new transport mechanism must define an identification number in ports. Note that this number is used purely internally in GNUnet and does not have to correspond to the underlying protocol in any way (though of course it can help users to understand which transports 25, 17 or 6 are if these numbers magically match well-known ports or IP protocol numbers).

For details on the transport API see our transport paper.

How do I write a new user interface for GNUnet?

Typically, you will not want to write a user interface for the gnunetd peer-to-peer deamon but for some specific GNUnet application. The first step is typically to factor the application code into a library that implements the core functionality (like talking to gnunetd via tcpio) and a simple shell application. For anonymous file-sharing, the primary libraries for the user interface are in src/applications/encoding/.

The next step is to examine the small shell-tools to get an idea how the application specific libraries work and to evolve the shell-tools into a user interface. You may also decide to just invoke the shell-tools as separate processes that do the real work, though this is much less efficient and less powerful (thus this is not the recommended approach).

Threading and Synchronization

GNUnet is inherently multi-threaded. Thus writing applications for GNUnet requires taking synchronization issues into account. GNUnet provides a minimal set of threading abstractions in the semaphore module, including semaphores, mutexes, recursive mutexes and thread creation. When writing code for GNUnet, the following basic rules must be followed:
  1. The core may call registered callback handlers at any time, and also concurrently. The application modules are responsible for synchronizing access to their internal state properly. In practice, client code will use MUTEX_CREATE in initializers and then guard access to mutable global shared state using MUTEX_LOCK and MUTEX_UNLOCK.
  2. In order to avoid deadlocks, code that was called via callback from the core may not invoke methods on the core while holding locks of the application. The rationale behind this rule is that the core may have a thread A that holds an internal lock L and calls a callback on the service. If simultaneously another thread B holds a lock S of the service and calls back on the core, this may result in a deadlock if that callback blocks trying to aquire lock L and thread A blocks trying to aquire lock S. If thread A does not hold any internal locks when calling on the core, this situation can be safely avoided.

    Programming with this paradigm is not very difficult. Still, it often requires a simple trick if the callback to the core requires an argument that is typically kept in the shared global state. The trick is, to copy the shared global state into a local buffer while holding the lock, then releasing the lock and finally doing the callback on the core. An example for this behavior can be found in the querymanager code.

  3. Core threads should never be blocked indefinitely. The core has a limited number of processing threads. If clients (service modules in the core or applications connecting via TCP) block these threads, the core will stop working. Disk-IO is typically not problematic (though excessive synchronous random IO operations may degrade performance significantly), and synchronization with other threads is also no problem (as long as they do not deadlock). Encryption operations are also not the problem. The only problem in practice are blocking socket operations. Blocking socket operations occur pretty much only apply to TCP sockets.

    The TCP transport layer avoids blocking operations using select calls and IO buffers. If a message can not be buffered (buffer full) and sending would block, the TCP transport layer discards the message (or: why we like unreliable operational semantics). Client-server TCP connections are more problematic. First of all, the client-server connection has reliable semantics. Thus the gnunetd tcpio code blocks on writes to the client. Similarly, the client blocks when sending messages to gnunetd. Since the client-server TCP connection is supposed to use a fast (loopback, LAN) connection and since gnunetd uses a thread per client connection, blocking on this connection is acceptable. The problem with blocking here is that it leaves the possibility of an inter-process deadlock.

    The deadlock can occur if the TCP thread that receives and processes messages from the client blocks on a write to the client (TCP buffer queue full) and thus gnunetd no longer reads from the TCP pipe. If the client blocks on a write to gnunetd and thus no longer reads from its end of the TCP connection, both processes block forever. This problem is typically hard to diagnose since it involves two processes and may only occur after the TCP buffers of the operating system are full. A typical symptom is that netstat -tn shows two local TCP connections with very full receive and send buffers that do not change.

    The solution to the problem is that every client (not peer, remember that clients are trusted and can thus be expected to follow the protocol correctly) must always be in a state where it has a thread that can receive and process messages from gnunetd. That thread should never block, neither by doing a direct write to gnunetd nor by aquireing a lock that could be hold by another thread while that thread writes to gnunetd. A typical solution to this problem is to use one thread that processes replies and another thread that generates requests. The RequestManager code is an example for this code. It uses the cron thread to send requests to gnunetd and a separate processing thread to process replies.


GNUnet Protocol I: node-to-node

The GNUnet node-to-node (peer-to-peer) procotol currently defines eleven different messages: The most basic sequence is that a host sends a HELO to any other host to notify it of its existance on the network. The recipient of the HELO sends back a PING to confirm that the host is actually reachable. The receiver of the PING always sends back a PONG to confirm receit.
Later, either of the hosts sends the other host a SKEY message to initiate a connection. The receiver acknowledges this with a PING, just this time using the encrypted channel that was established with the session key. Again, the PING is answered with a PONG, which is also again encrypted. If no PING is received, the initiator can send another SKEY. If no PONG is received, the responder can send another PING. This sequence is pretty much equivalent to the initial three-way handshake in TCP.

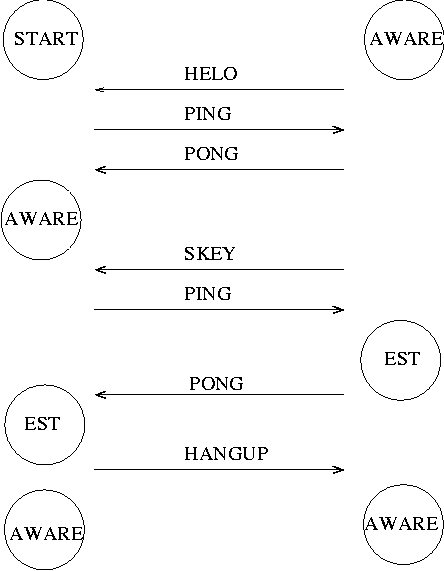

The following diagram illustrates a possible sequence of messages:

Nodes then exchange service messages like the QUERY, CHK and 3HASH messages. TIMESTAMP and SEQUENCE numbers can be used to prevent a malicious adversary to replay packets. NOISE must be used to make packets look uniform in size. The MTU is determined by the transport layer and advertised in the HELO message. HANGUP can be used by any of the nodes to drop the connection. A connection that is inactive for a long time (about 15 minutes) is also considered dropped. The HANGUP is neither acknowledged nor required.

A packet exchanged between GNUnet hosts can contain any number of messages (only limited by the MTU of the transport layer).

The transport layer implementation is responsible for encapsulating the message appropriately. In addition to the message itself, the transport mechanism must communicate:

Depending on the implementation of the transport mechanism, not all of these must be transmitted for each message, for example, a stateful transport such as TCP may only transmit the sender identity once and use special messages to switch between plaintext and encrypted messages.

The current UDP implementation encapsulates messages in this format:

00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
size of the packet (NBO) is the message encrypted (YES=1, NO=0) (NBO)
crc (NBO)
sender identity
sender identity
sender identity
sender identity
sender identity
Messages ...

The size of the UDP packets is by default 1472 octets, the advertised MTU to the GNUnet core is 1444 octets. If your network MTU is smaller than 1500 octets (ethernet), you may want to specify a different MTU in the configuration.

The encryption (blowfish) of the noise-padded body is done by the GNUnet core, the transport implementation only needs to transmit the information listed above. For received packets, the transport is not responsible for checking the CRC. The GNUnet core will decrypt the message (if applicable) and compute the CRC over the body of the packet (all messages) in plaintext. If the CRC check fails the core will discard the message silently.

Each of the messages in the body has the form

00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
message size request Type
followed by message size octets for the message. GNUnet clients are required to skip unknown request types. The message-size field is the size of the message in octets excluding the message size field itself (but not the request type field).

HELO

A HELO packet is used to propagate information about participating nodes throughout GNUnet. Each GNUnet node is identified by its public key K. Throughout GNUnet, the public key of a node is often abbreviated by just the hash of K, short H(K).
The HELO packet is the way nodes propagate public keys of other nodes. Furthermore, the identity of the node is bound to an address. How an address is specified depends on the underlying transport mechanism that is used. For example, the UDP service uses the IP and the UDP port. An SMTP transport implementation may choose to use an E-mail address.
GNUnet nodes can have multipl addresses and change addresses at any time, e.g. if the IP is dynamically assigned, like in DHCP or on dialup. The HELO message is used to notify other hosts of a changed address.
Security considerations. Malicious nodes could disrupt GNUnet by telling nodes fake addresses. As nodes forward HELOs from other nodes, malicious hosts could replace the address of the original node by an invalid address. In order to prevent this, the address portion of a HELO must be signed with the private key of the node. In order to prevent malicious hosts from forwarding outdated addresses, the signed portion of a HELO also contains a timestamp stating how long the HELO is going to be valid. The administrator of each node can specify how long the HELOs signed by that node are going to be valid; the administrator is in the best position to judge how long the current address will be valid.
Another security concern is where hosts send out valid, signed HELO messages with IPs of non-participating machines. The goal of this attack could either be to flood the non-participating hosts with traffic (trick GNUnet into performing an attack) or to make it hard for the receiver to find a valid GNUnet host in the ocean of addresses that it learned from the HELOs. GNUnet defends against this type of attack by sending a PING to the acclaimed host and only believes the HELO of a PONG is received. Thus the malicious host sending fake HELOs will fail to trick GNUnet into repeatedly trying to connect to the non-participating host.

Receivers of HELOs must verify the signature and check that the HELO has not expired. Nodes should delete HELOs that have expired for a long time. HELOs that expired just a short time ago may belong to nodes that may re-appear. GNUnet nodes may still keep trying to connect to these nodes, but their HELOs should no longer be propagated. HELOs can be send to hosts without an established encrypted connection (in plaintext). This is necessary because HELOs and SKEYs are needed to form the encrypted channel in the first place. Once an encrypted channel was formed, nodes can exchange HELOs via that channel.

00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
size (NBO) 0 (type) (NBO)
RSA signature (256 octets)
Public Key, length of N + E + 2 (256+2+2 = 260) (NBO) Public Key, length of N (256) (NBO)
Public Key, N (256 octets)
Public Key, E padding (must be 0)
sender Identity
sender Identity
sender Identity
sender Identity
sender Identity
expiration time
sender address size (octets)(NBO) transport protocol number (NBO)
MTU (NBO)
sender address (sender address size bytes)

For the UDP and TCP transport mechanisms, the sender address has this format:

00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
IP (NBO)
sender port(NBO) reserved (must be 0) (NBO)
The sender address size is thus 8 octets for UDP and TCP.

SKEY

Sessionkeys are 128 bit keys for blowfish, a symmetric cipher that is used for all communication between GNUnet nodes except HELOs and SKEYs themselves (for those, RSA with 2048 bit keys is used).
A session between two GNUnet nodes is the existance of a common, active sessionkey between the two nodes. Even if the underlying protocol may be connectionless, the notion of a session is still meaningful for GNUnet.
A session key exchange may be initiated by either node. SKEYS are always encrypted with the public key of the receiving node. They are usually not send through an encrypted channel (if nodes that already have an SKEY pair decide to exchange a fresh sessionkey, that key may be send via the encrypted channel; even in that case, the key must also be encrypted with the public key of the receiving node).

The sender of a session key not only encrypts the key with the public key of the receiver but also signs it (together with an creation time) with its own private key. The sender must remember the sessionkey and can start using it after receiving an acknowledgement (in the form of a PING) from the receiver.
The format of an SKEY message is the following:

00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
520 (size) (NBO) 1 (type) (NBO)
creation time (not expiration!) (NBO)
RSA Encrypted data (256 octets)
Signature (256 bytes)
Notice that while SKEY is not aligned, there should be nothing following an SKEY Message in a packet since afterwards the new sessionkey is used.

PING

PINGs are used to test if a node receives messages correctly. PINGs are exchanged in encrypted and in plaintext. The receit of a PING must be answered by a PONG with identical body (the receiver just changes the type). The challenge number in a PING is a random number that is used to make it impractical for an adversary to guess the contents of the PING and thus hard to fake a PONG response.
The identity stored in the PING is the identity of the receiver. If that identity does not match, the PING must be silently discarded.
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
24 (size) (NBO) 2 (type) (NBO)
receiver identity
receiver identity
receiver identity
receiver identity
receiver identity
challenge

PONG

PONGs are responses to PINGs. If the node is not aware of a corresponding PING (or if the challenge is wrong), the PONG is silently dropped. Otherwise the appropriate action corresponding to the PING is triggered.
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
24 (size) (NBO) 3 (type) (NBO)
receiver identity
receiver identity
receiver identity
receiver identity
receiver identity
challenge

TIMESTAMP

TIMESTAMPs can be used by GNUnet nodes to make replay attacks harder. If a message contains a TIMESTAMP, the receiver checks that the current time is before the given time. If that is not the case, the rest of the message is discarded silently.
Senders are advised to use rather timespans because GNUnet nodes may not be perfectly synchronized in time. The current implementation honors timestamps but does not generate them itself. SEQUENCE numbes are used to guard against replay attacks instead. For UDP with a low chance of reordered messages, this is appropriate. Other transport protocols (like E-Mail) may work better with TIMESTAMPs.
The format of a timestamp message is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
8 (size) (NBO) 4 (type) (NBO)
expiration time (seconds since 1970) (NBO)
Timestamps numbers may only be used in encrypted traffic (HELOs and SKEYS have another form of timestamps integrated into the signed part of the message).

SEQUENCE

The format of a sequence number message is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
8 (size) (NBO) 5 (type) (NBO)
sequence number (NBO)
A node may keep track of the last sequence number that another node was using. If it receives a packet with a lower sequence number, that packet must be discarded. Whenever a sessionkey exchange takes place, this last sequence number must be reset to 0. A sequence number of 0 is invalid. Sequence numbers are unsigned 32 bit integers. Sequence numbers may only be used in encrypted traffic.

NOISE

Noise is used to fool adversaries that perform traffic analysis. A node receiving noise should just silently ignore it. Nodes may append noise to packets that are short to make all packets look more uniform in size. Noise should only be used in encrypted traffic. The format for noise is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
size in octets, ≥ 4 (NBO) 6 (type) (NBO)
noise
The number of bytes of noise should be a multiple of 4 to preserve alignment, except at the end of a packet where perfectly identical packet sizes are more important. The noise in the packet should be (pseudo) random.

HANGUP

The format of the HANGUP message is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
24 (size) (NBO) 7 (type) (NBO)
sender identity
sender identity
sender identity
sender identity
sender identity
When a HANGUP message is received, the node must stop using the current sessionkey (assuming the sender that is given in the message matches the sender of the message). If further communication is desired, a new sessionkey may be exchanged.


Anonymous file sharin logo The anonymous file-sharing service (AFS) defines three messages:

QUERY

GNUnet's anonymous file sharing uses two basic types of queries, queries that search unknown content and queries for downloading. The search queries contain the triple-hash of the keyword and the response is a 3HASH message. The download queries contain the hash of the encrypted block, the response is a CHK message. In their pure form, both types of queries can not be distinguished, only after a reply was found, the responder can tell which form of query was encountered.
The download-query has a variant, the multi-query with super-hash. In this form, a single query message contains multiple hash-code requesting multiple blocks of the same file. A multi-query message does not have a different protocol number but can be identified by looking at the size-field of the query message, which is 32+n*20 bytes. If n is greater than 1, the query must be a multi-query. A multi-query groups multiple hash codes from the same IBlock. The first hash code of a multi-query is called the 'super' hash. It is the hash of the concatenation of all hash-codes of the IBlock. It is followed by up to 25 hash codes from that IBlock. The 'super' hash can be used to speed-up the lookup process since it can be treated as a summary of the other hash codes that follow. Note that even if the IBlock had 25 hash codes, not all must be included in the multi-query. Thus the super-hash can typically not be obtained from the following queries.

Multi-queries do not exist for queries that search for content.

00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
32+20*n (size) (NBO) 16 (type) (NBO)
priority (NBO)
time-to-live (NBO)
return to (NBO)
return to
return to
return to
return to
query[n]
query[n]
query[n]
query[n]
query[n]
Note that the query can be the triple-hash for a search or the hash of the encrypted block for a download. The receiver can not tell the difference until a reply is found. Depending on if the query matches a triple-hash or a CHK query, the receiver sends back a CHK or a 3HASH reply.

3HASH

A 3HASH content message is a reply of a GNUnet node to a QUERY that is a search. The difference between a search and a download is that there can be multiple results to a search, whereas there can only be one, unique result for a download. The 3HASH reply contains the encrypted data EKD and the double-hash H2 = H(K). The encrypted data is always 1k in size. The receiver computes the double-hash and verifies that it matches the triple-hash of the QUERY that was originally sent. If that is the case, the receiver trusts that the content matches the query (the sender was able to invert the hash) and forwards it to the next destination.
3HASH messages may only be exchanged via an encrypted channel (to make traffic analysis harder). See also the GNUnet encoding paper and the encoding page for the way data is transmitted in GNUnet.
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
1048 (size) (NBO) 17 (type) (NBO)
proof (double hash)
proof (double hash)
proof (double hash)
proof (double hash)
proof (double hash)
1024 octets of encrypted content

CHK

A CHK content message is a reply of a GNUnet node to a QUERY that was used to download a specific file. It contains the encrypted data EH(D)(D). The hash of the encrypted data must match the original query, H(EH(D)(D)). The encrypted data is always 1k in size. The plaintext was padded with zeros if necessary. The receiver computes the hash of the content and verifies that it matches the query of the QUERY that was originally sent. If that is the case, the receiver forwards the reply to the next destination.
CHK messages may only be exchanged via an encrypted channel (to make traffic analysis harder). See also the GNUnet encoding paper and the encoding page for the way data is transmitted in GNUnet.
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
1048 (size) (NBO) 18 (type) (NBO)
1024 octets of encrypted content

Additional applications may define more messages. The assigned numbers should be noted in ports.h. Experimental messages should use high numbers (> 60000).

GNUnet Protocol II: client-to-node

The GNUnet client-to-node procotol currently defines the following messages: REQUEST messages are messages from the client to gnunetd. REPLY messages are messages from gnunetd to the client. While gnunetd should not send data without being asked first, the client must silently ignore REPLY messages that were not requested.
This protocol is used on the trusted, reliable TCP connection between gnunetd and the clients gnunet-insert, gnunet-search, gnunet-download and gnunet-gtk. TCP is stream oriented, but GNUnet breaks the stream into records. See also tcpio.c. Every record has the following basic format:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
size of the record (NBO) TCP type (NBO)
size bytes

The only generic client-server (CS) message that are currently defined are RETURN_VALUE and GET_STATISTICS and STATISTICS. All other CS messages are specific to anonymous file-sharing (AFS).

CS_RETURN_VALUE

The RETURN_VALUE message is used to communicate simple (int) return values from TCP requests. The format of the RETURN_VALUE message is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
8 (size) (NBO) 0 (type) (NBO)
the return value (NBO)

CS_GET_STATISTICS

With this message, the client can request statistics from the server. The server always replies with a STATISTICS message.
The format of the GET_STATISTICS message is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
4 (size) (NBO) 1 (type) (NBO)

CS_STATISTICS

The available statistical information may change between GNUnet versions. The format of this message is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
(size) (NBO) 2 (type) (NBO)
start time (gnunetd start) (NBO)
start time (gnunetd start) (NBO)
total counters (number of statistical values gnunetd keeps track of) (NBO)
stat counters (number of statistical values transmitted in this message) (NBO)
values (unsigned long long[stat counters]) (NBO)
descriptions (stat counters of zero-terminated strings describing the values)
The server sends potentially several STATISTICS messages until the sum of stat counters in all messages equals the total counters advertised. The last decription string is also zero-terminated,. Thus the last char in every STATISTICS message is 0.


Anonymous file sharin logo

CS_QUERY

The client sends a message of this form whenever it is searching or downloading. The server is expected to perform the search and send results back to the client. The server can send any number of results with any delay (but typically no results are returned after ttl seconds and the client will re-issue the request), including none. The format of the CS_QUERY message is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
12+n*20 (size) (NBO) 8 (type) (NBO)
priority (NBO)
time to live (ttl) (NBO)
query [n]
query [n]
query [n]
query [n]
query [n]

CS_3HASH

If gnunetd finds a search result to a QUERY, it sends back the data encapsulated in this message. The message contains the double hash from the query to identify the result. The format of the message is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
1048 (size) (NBO) 9 (type) (NBO)
proof (double hash)
proof (double hash)
proof (double hash)
proof (double hash)
proof (double hash)
data (1024 octets)

CS_CHK

If gnunetd finds a download result to a QUERY, it sends back the data encapsulated in this message. The format of the message is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
1028 (size) (NBO) 10 (type) (NBO)
data (1024 octets)

CS_INSERT_CHK

Clients send this message to insert search results into the network. The server is supposed to store the data and share it with other nodes. Note that there are two ways to share data, via insertion and via indexing. Indexing only applies to downloads and never to search results. The importance in this message tells the server how important it is to store this content, so that the server can decide which content to discard if it is running out of space.
If the insertion was successful, the server replies with a RETURN_VALUE containing OK, otherwise the server replies with SYSERR.
The format of the INSERT_CHK message is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
1032 (size) (NBO) 11 (type) (NBO)
priority (NBO)
data (1024 octets)

CS_INSERT_3HASH

Clients send this message to insert search results into the network. The server is supposed to store the data and share it with other nodes. The importance in this message tells the server how important it is to store this content, so that the server can decide which content to discard if it is running out of space.
If the insertion was successful, the server replies with a RETURN_VALUE containing OK, otherwise the server replies with SYSERR.
The format of the INSERT_3HASH message is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
1052 (size) (NBO) 12 (type) (NBO)
priority (NBO)
proof (double hash)
proof (double hash)
proof (double hash)
proof (double hash)
proof (double hash)
data (1024 octets)

CS_INDEX_BLOCK

Clients send this message to insert content into the network. The indexing message does not contain the data but describes a way for the server to find on-demand. The ContentIndex struct contains an index into the list of filenames and the offset in the file at which the block corresponding to the query can be found.
If the indexing was successful, the server replies with a RETURN_VALUE containing OK, otherwise the server replies with SYSERR. The format of the INDEX_BLOCK message is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
(size) (NBO) 13 (type) (NBO)
ContentIndex (32 octets)

CS_INDEX_FILE

This message is used by the client to add a file to the list of shared files. gnunetd responds to this request with an index into the list of files which can be used in the CS_INDEX_BLOCK messages. Notice that in order for on-demand sharing to work, the inserting client and the server must have the shared file available under the same location and thus typically run on the same machine. The length of the filename is limited to 1023 characters. The format of the INDEX_FILE message is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
1032 (size) (NBO) 20 (type) (NBO)
length of the filename (NBO) 0 (reserved)
filename, zero-terminated 1024 octets, padded with zeros

CS_INDEX_SUPER

This message adds a hash-code to one of the bloom filters, making the content effectively available. The format of the INDEX_SUPER is:
00010203 04050607 08091011 12131415
16171819 20212223 24252627 28293031
24 (size) (NBO) 15 (type) (NBO)
super hash
super hash
super hash
super hash
super hash


Code Modules

The most important modules in GNUnet are: There are two typical flows for data. Note that this is the flow of the data, several threads are involved in this.
First, a client such as gnunet-search or gnunet-insert connects (via a trusted TCP connection, typically loopback) to the tcpserver module. The most common request is a query which is handed by the CORE to the AFS service and remembered in routing. The AFS service then produces a query which is enqueued in the connection module. After a while, the entire buffer is flushed and send to the destination(s) with a little help from the knownhosts module. This transaction goes over the untrusted (but authenticated and encrypted) UDP channel.
The second path comes into play after gnunetd receives a message on any transport mechanism. The message is demultiplexed. If it is a query, the lookup module performs a lookup and potentially sends a reply. If the time-to-live of the query is not expired, the query is remembered in the routing module and forwarded using the connection module. If the message is a reply, the routing module is considered for where to send the reply to (local client(s) and/or other nodes).

util/configuration

The configuration module reads the configuration using the OpenSSL library and provides configuration information to the rest of GNUnet.

server/handler

This module verifies the integrity of incoming node-to-node traffic and demultiplexes the traffic to the appropriate handlers. The verification process decrypts encrypted packets and performs a CRC check.

server/tcpserver

This module performs the appropriate operations for incoming CS traffic. Since the connection is trusted, there is only a limited amount of verification taking place. The tcpserver module starts one thread per TCP connection.

server/heloexchange

This module is responsible for advertising the presence of the current node to others. It also occasionally forwards foreign HELOs. HELO messages that have expired are deleted by heloexchange.

server/trustservice

The trustservice provides access to information about how much the local node trusts another node.

server/connection

The connection module stores information about to which other nodes the local node is connected. It buffers outgoing traffic and keeps session information, like the sequence number and the session key. The connection API provides means to unicast a message to a specific node, to forward a query to a subset of the nodes or to broadcast a message to all other nodes.

server/keyservice

The keyservice module manages the private key of the local node and is used for signing, encrypting and decrypting messages with the RSA key.

server/pingpong

The ping-pong module is responsible to record which ping messages were sent and to trigger actions after a corresponding pong is received.

server/knownhosts

The knownhosts module keeps track of the known GNUnet nodes and provides an API to operate on that list. This module maps node identities (the hash of the public key of the node) to all the information that can be obtained from the HELO, including the current address and the full public key.

Anonymous file sharin logo

afs/database/

The database manager module is responsible to check if content matching an incoming query is available locally. The manager code is responsible for performing the lookup and building the response. It is also there to decide which content to store locally (manages the resource disk space). Content migration is also controlled by the database manager module. The content storage is abstracted into a high-level special purpose database abstraction, the high backend. There are two implementations of the high backend. The first one uses mysql. The second implementation maps the high backend interface to a simpler API ("low backend") that matches the interface provided by standard trivial databases such as gdbm, tdb or bdb.

afs/protocol/routing

The routing module is responsible to keep information about queries that were forwarded. If the node receives a reply, the routing module must decide whether and if yes where to forward the reply to. Possible destinations are clients that are directly connected via a trusted TCP connection or other GNUnet nodes.

The routing modul is implemented as a large hashtable. In the case of collisions, the entry with the smallest remaining time-to-live is discarded. Time-to-lives in queries are bounded by the query priority to prevent malicious peers from taking over the routing table.


Future Work

Code contributions (GPL) are generally welcome. Before writing a larger patch, you may want to discuss the idea on the developer mailinglist first.
Some ideas (in random order, contacts listed are people that seem to have given the idea some thought and/or may even have some code): And if you want to go totally crazy:

Footnotes

NBO - network byte order

Fields of this type are in network byte order. Before reading these fields, they must be converted to host byte order using htons for 2-byte values and htonl for 4-byte values. Before writing to these fields, the value must be converted using ntohs and ntohl respectively.


Copyright (C) 2002, 2003 Christian Grothoff.

Verbatim copying and distribution of this entire article
is permitted in any medium, provided this notice is preserved.

Welcome Contact FAQ Download Documentation Papers Links

gnunetweb@mail.ovmj.org
